โฟโต้สวิตช์แบบทรงกระบอก
Round Photo Switch
รุ่น MH15
คุณลักษณะ
สามารถใช้ในงานอุตสาหกรรมได้ทุกประเภท เช่น ตรวจนับวัตถุที่ถูกมีการเคลื่อนไหวโดยรอก,ใช้ในการกันประตูลิฟท์หนีบ,งานล้างรถหรือล้างขวด ลอกป้ายฉลาก,ตรวจนับห่อสินค้า,กำหนดรถยนต์อยู่ตรงตำแหน่งที่จะพ่นสี,ตรวจดูสินค้าว่ามีจุกฝาปิดทุกขวดหรือเช็คฝากล่องปิดทุกกล่องหรือไม่,ตรวจดูว่าแก้วพลาสติกคว่ำหรือหงาย เป็นต้น
Ordering Information
Type | Part no. |
---|---|
MHL15-P3236 | 1026127 |
รายละเอียด || โฟโต้สวิตช์แบบทรงกระบอก รุ่น MH15
- Sensor/detection principle Photoelectric retro-reflective sensor
- Housing design (light emission) Cylindrical, straight
- Housing length 36.8 mm.
- Thread diameter (housing) M18 x 1
- Optical axis Axial
- Sensing range max. 0.035 m ... 5 m 1)
- Sensing range 0.035 m ... 3.5 m 1)
- Type of light Visible red light
- Light source LED 2)
- Light spot size (distance) Ø 80 mm (3.5 m)
- Angle of dispersion Approx. 1.5°
- Wave length 650 nm
- Adjustment Fix
Mechanics/Electronics || โฟโต้สวิตช์แบบทรงกระบอก รุ่น MH15
- Supply voltage 10 V DC ... 30 1)
- Ripple ≤ 5 Vpp 2)
- Power consumption 30 3)
- Output type PNP
- Switching mode Dark switching
- Signal voltage PNP HIGH/LOW Uv - (< 2,9 V) / ca. 0 V
- Output current Imax. 100
- Response time ≤ 1.25 ms 4)
- Switching frequency 400 5)
- Connection type Connector M12, 3-pin
- Circuit protection A 6) C 7) D 8)
- Protection class III
- Weight 7 g
- Polarisation filter ✔
- Housing material ABSplastic
- Optics material PMMA
- Enclosure rating IP 67 IP 69K
- Ambient operating temperature –25 ... +55 °C
- Ambient storage temperature –25 ... +70 °C
- UL File No. NRKH.E189383 & NRKH7.E189383
Dimensional Drawing (dimensions in mm (inch))
Connection Diagram
Characteristic Curve
Sensing Range Diagram

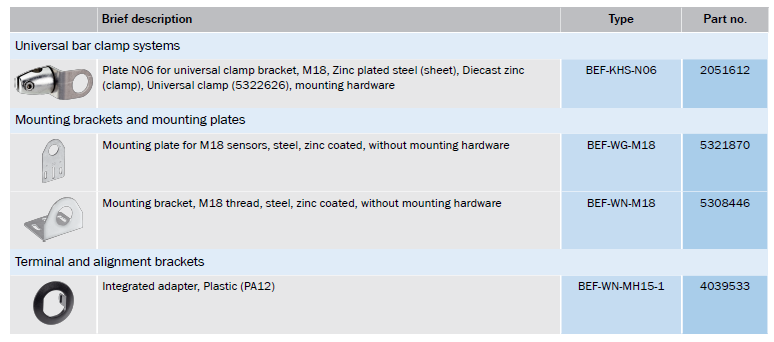

Recommended Accessories
