โฟโต้สวิตช์แบบทรงสี่เหลี่ยม
Square Photo Switch
รุ่น M4.2
คุณลักษณะ
ตัวเรือนขนาดเล็กกะทัดรัด ทำจากพลาสติกแข็งแรงทนทาน แบบแยกตัวรับ ตัวส่ง Thru-Beam Sensor M4.2/MV4.2-8000-RT-4922
รายละเอียด || โฟโต้สวิตช์แบบทรงสี่เหลี่ยม รุ่น M4.2
- ตัวเรือนขนาดเล็กกะทัดรัด ทำจากพลาสติกแข็งแรงทนทาน
- แบบแยกตัวรับ ตัวส่ง Thru-Beam Sensor M4.2/MV4.2-8000-RT-4922
- 8000 mm. Detection Range
- Light Source LED
- Light type modulated visible red light
- Function indicator LED yellow, lights up with receiver lit
- Control elements sensitivity adjustment
- Operating Voltage 10 ... 30 V DC
- Switching type light/dark on electrically switchable
- Output Push-Pull output
- Short-Circuit protected, reverse polarity protected
- Degree of Protection IP67 / IP69K
- Connection M8 x 1 Connector, 4-pin
- Material Housing ABS
Dimensions
Electrical Connection
Pinout
Indicators/Operating Means

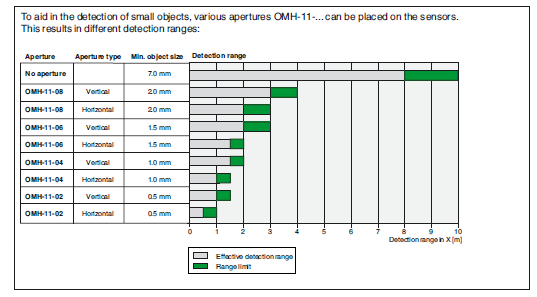

Curves/Diagrams
