โฟโต้สวิตช์แบบทรงสี่เหลี่ยม
Square Photo Switch
รุ่น XG Series
คุณลักษณะ
รายละเอียด||โฟโต้สวิตช์แบบทรงสี่เหลี่ยม รุ่น XG-SP2M Series
- Tiny designed with built-in amplifier, long distance detection.
- Good environmental resistance and excellent anti noise.
- With Light ON and Dark ON two system.
- All product are CE approved.
Item | Specifications รุ่น XG-SP2M Series | |||
---|---|---|---|---|
Model Number | XG-SP2MNE1 | XG-SP2MNE2 | XG-SP2MPE1 | XG-SP2MPE2 |
Sensing Method | Through-Beam | |||
Sensing Distance | 2M | |||
Switching Output | NPN NO | NPN NC | PNP NO | PNP NC |
Standard Sensing Object | Opaque 6mm. | |||
Operating Voltage | DC 12~24V±10% | |||
Response Time | <5ms | |||
Load Current | <100mA | |||
Light Source | Infrared LED | |||
Operation Indicator | Red LED | |||
Circuits Protection | Reversed Polarity Protection | |||
Enclosure Protection | IEC IP65 | |||
Ambient Temperature & Humidity Range | Operating:-20 ~ 55℃ / RH 35 ~85﹪ (with no icing or condensation) | |||
Ambient Illumination | Lamplight <3500 Lux / Sunlight <11000 Lux | |||
Housing Material | Case:Nickel-Plated Brass / Lens:Acrylic | |||
Connecting Method | Pre-wired 2M Cable | |||
Accessories | Nuts |
Dimension / Wiring Diagram
รายละเอียด||โฟโต้สวิตช์แบบทรงสี่เหลี่ยม รุ่น XG-SP30 Series
- Tiny designed with built-in amplifier, for tiny objects detection.
- Good environmental resistance and excellent anti noise.
- With Light ON and Dark ON two systems.
- All product are CE approved.
Item | Specifications รุ่น XG-SP30 Series | |||
---|---|---|---|---|
Model Number | XG-SP30NE1 | XG-SP30NE2 | XG-SP30PE1 | XG-SP30PE2 |
Sensing Method | Through-Beam | |||
Sensing Distance | 30M | |||
Switching Output | NPN NO | NPN NC | PNP NO | PNP NC |
Standard Sensing Object | Opaque 3mm. | |||
Operating Voltage | DC 12~24V±10% | |||
Response Time | <5ms | |||
Load Current | <100mA | |||
Light Source | Infrared LED | |||
Operation Indicator | Red LED | |||
Circuits Protection | Reversed Polarity Protection | |||
Enclosure Protection | IEC IP65 | |||
Ambient Temperature & Humidity Range | Operating:-20 ~ 55℃ / RH 35 ~85﹪ (with no icing or condensation) | |||
Ambient Illumination | Lamplight <3500 Lux / Sunlight <11000 Lux | |||
Housing Material | Case:Nickel-Plated Brass / Lens:Acrylic | |||
Connecting Method | Pre-wired 2M Cable | |||
Accessories | Nuts |

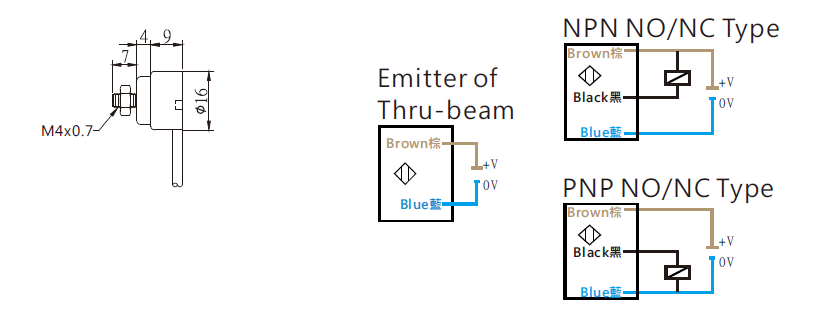

Dimension / Wiring Diagram
